Within Congaree Radar
Was Congaree's 6,000 mph Target an Artefact?
The extraordinary speed may have resulted from scan-linked interference rather than a physical craft crossing South Carolina.
On this page
- How the radar return was recorded
- Why scan linked movement raised doubts
- What evidence would confirm or reject interference
Page outline Jump by section
Introduction
The most plausible conventional explanation for the famous 6,000 mph radar target detected at Congaree Air Force Base on 4 December 1952 is not that an aircraft crossed South Carolina at extraordinary speed, but that the radar display was affected by electronic interference. Importantly, this was not a later sceptical invention. The Air Force’s own investigators raised the possibility while the case was still under investigation, noting that the apparent target showed characteristics consistent with interference from another radar station rather than the movement of a physical object. At the same time, they concluded that the available evidence was insufficient to prove that explanation, leaving the case officially classified as “Unknown”.[Sunrise Page]sunrisepage.comSunrise Page SECBHITYINFORMATION UNC BOOK - REPORT NO. 5…
Understanding why investigators considered interference a serious possibility helps explain why the dramatic headline figure of 6,000 mph has remained disputed for more than seventy years.

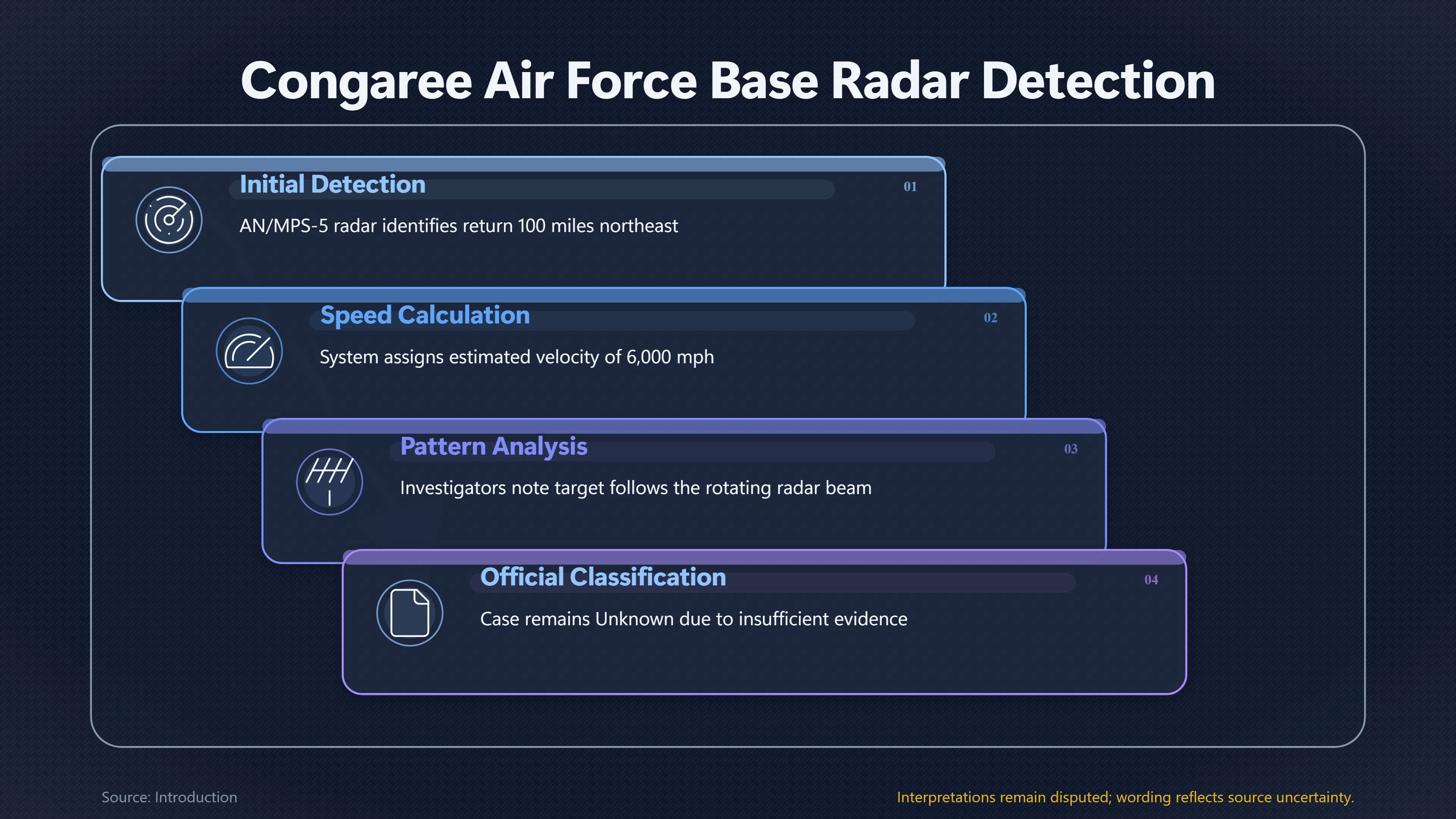

How the radar return was recorded
The surviving Project Blue Book status report describes a radar-only event. An AN/MPS-5 radar at Congaree Air Force Base detected an unidentified return about 100 miles north-east of the station. The contact lasted approximately five minutes and was assigned an estimated speed of around 6,000 mph. No visual sighting accompanied the radar detection.[Sunrise Page]sunrisepage.comSunrise Page SECBHITYINFORMATION UNC BOOK - REPORT NO. 5…
That distinction matters because primary radar does not directly observe an object’s continuous motion. Instead, it builds a track from successive echoes as its rotating antenna repeatedly scans the sky. A calculated speed depends on those successive positions representing the same physical object. If the radar instead receives unrelated or displaced echoes, the resulting speed estimate can become unrealistically high without any corresponding high-speed vehicle.
The Air Force investigators therefore focused less on the headline velocity itself than on whether the displayed positions represented a genuine airborne target.
Why scan-linked movement raised doubts
The key sentence in the Blue Book report is often overlooked. Investigators wrote that previous radar cases of this type had proved to be “probable interference from another radar station” and added that the Congaree incident might belong in the same category because of two unusual characteristics:
- the extreme calculated speed of roughly 6,000 mph;
- the target’s apparent tendency to follow the radar beam’s sweep.[Sunrise Page]sunrisepage.comSunrise Page SECBHITYINFORMATION UNC BOOK - REPORT NO. 5…
The second point is especially significant.
A genuine aircraft should move independently of the antenna. Although its displayed position changes as the antenna rotates, its track should reflect the aircraft’s own motion through space. By contrast, interference generated by another radar transmitter or by electronic interactions within the receiving system can appear synchronised with the rotating scan. Instead of representing an object travelling across South Carolina, the display may show a false return that seems to advance as the antenna sweeps around.
To experienced radar analysts, movement tied to the antenna rotation is therefore a warning sign that the display may be an electronic artefact rather than a real target.
The Air Force did not state that interference had been proven. Rather, it identified scan-linked behaviour as one reason to doubt that the calculated speed represented an actual aircraft.[Sunrise Page]sunrisepage.comSunrise Page SECBHITYINFORMATION UNC BOOK - REPORT NO. 5…
Why another radar station was considered
In the early 1950s, military air-defence radar stations operated across large areas of the United States. Powerful transmitters working on similar frequencies could occasionally produce unwanted interactions, particularly when atmospheric conditions allowed radio energy to travel farther than expected.
Such interference could create:
- false targets;
- displaced echoes;
- intermittent returns;
- apparent jumps in position between successive antenna sweeps.
These effects could produce tracks that looked convincing on a radar display even though no solid object occupied the reported position.
The Blue Book investigators explicitly noted that earlier incidents with similar characteristics had eventually been attributed to interference from another radar installation. They considered the Congaree event sufficiently similar that they treated interference as a leading hypothesis from the outset.[Sunrise Page]sunrisepage.comSunrise Page SECBHITYINFORMATION UNC BOOK - REPORT NO. 5…
Why weather information became part of the investigation
Although interference was suspected, investigators did not close the case immediately because an important piece of evidence was missing.
The report states that insufficient information had been collected on local weather, including temperature and moisture at different altitudes. Those measurements were needed because unusual atmospheric conditions can affect radar performance by bending radio waves more strongly than normal. Under certain conditions, radar energy may travel beyond its expected range or receive echoes from unexpected directions, making false or misleading targets more likely.[Sunrise Page]sunrisepage.comSunrise Page SECBHITYINFORMATION UNC BOOK - REPORT NO. 5…
The routine weather observations recorded at the base—low stratus cloud, light north-easterly wind and no precipitation—were not enough to reconstruct the atmosphere’s vertical structure. Without upper-air temperature and humidity profiles, investigators could neither confirm nor eliminate propagation effects that might have contributed to electronic interference.
As a result, the case remained unresolved rather than being formally explained.
What evidence would confirm or reject interference?
Modern radar investigations would normally seek several independent lines of evidence before accepting either explanation.
Evidence favouring a genuine object would include:
- simultaneous tracking by independent radar systems using different equipment;
- consistent tracks unaffected by antenna rotation;
- matching visual observations;
- corroboration from aircraft or additional sensors;
- preserved radar recordings allowing later analysis.
Evidence supporting interference would include:
- returns that remain tied to the antenna sweep;
- matching reports of interference from nearby radar stations;
- reproduction of the effect under similar technical conditions;
- atmospheric measurements showing conditions favourable to abnormal radio propagation;
- engineering evidence identifying the electronic mechanism responsible.
The surviving Congaree documentation contains neither set of evidence in a complete form. The radar operators’ testimony survives, but no known display photographs, raw radar recordings or independent radar confirmation have emerged. Likewise, investigators never obtained the atmospheric information they believed was necessary to test the interference hypothesis fully.[Sunrise Page]sunrisepage.comSunrise Page SECBHITYINFORMATION UNC BOOK - REPORT NO. 5…
Why the interference explanation remains the strongest conventional interpretation
The Congaree incident occupies an unusual position in South Carolina’s UFO history because the official record simultaneously supports and weakens the extraordinary claim.
On one hand, trained Air Force personnel reported a genuine radar anomaly that investigators did not dismiss as operator error. On the other, the same investigators identified technical features that made a physical object travelling at 6,000 mph appear doubtful. The suspected link between the target and the antenna sweep is particularly difficult to reconcile with a conventional flight path.
For that reason, many historians of the case regard electronic interference as the most plausible conventional explanation, while recognising that the Air Force never demonstrated it conclusively. The official classification therefore remained “Unknown” not because investigators believed an extraordinary craft had been confirmed, but because the available technical evidence was incomplete and could not decisively distinguish between an electronic artefact and a genuine radar target.[sunrisepage.com]sunrisepage.comSunrise Page SECBHITYINFORMATION UNC BOOK - REPORT NO. 5…
